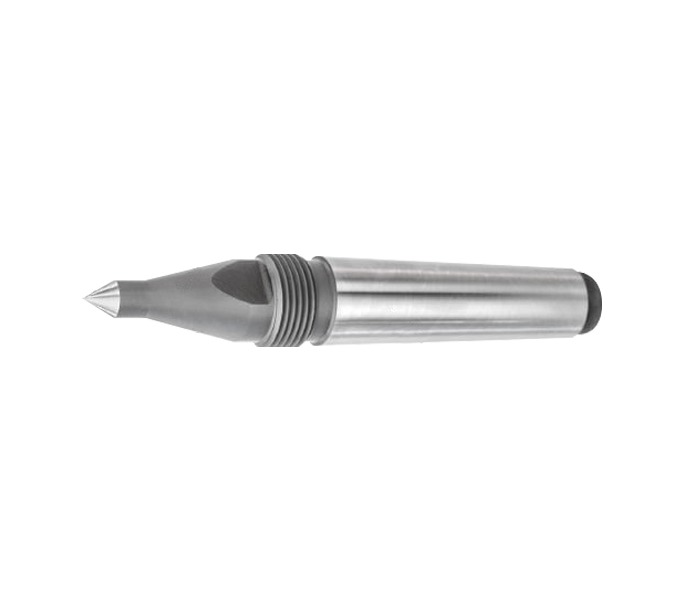

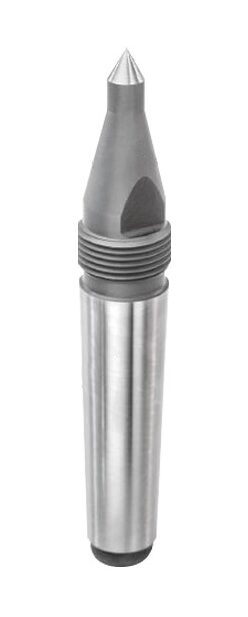

SUPERTECH Solid Center / Dead Center CNC Type A
70 $ – 190 $
SUPERTECH Solid Center / Dead Center CNC Type A
- High Performance Centers made from high-carbon alloy steel
- Ensuring superior roundness and exceptional product quality
- Hardness Rockwell C 61°- 63° HRC
- Concentricity Deviation within 0.005mm T.I.R
- Ideal for rigid requirements of CNC turning
Description
SUPERTECH Solid Center / Dead Center CNC Type A
- High Performance Centers made from high-carbon alloy steel
- Ensuring superior roundness and exceptional product quality
- Hardness Rockwell C 61°- 63° HRC
- Concentricity Deviation within 0.005mm T.I.R
- Ideal for rigid requirements of CNC turning

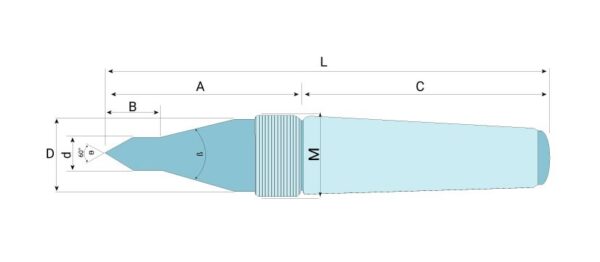

| Model No. | D | d | A | B | C | L | ß (Degree) | M (Thread) |
| STDNCA2 | 18 | 11 | 51 | 21 | 69 | 120 | 40° | M22 x 1.5 |
| STDNCA3 | 24 | 13 | 64 | 25 | 86 | 150 | 40° | M27 x 1.5 |
| STDNCA4 | 31.6 | 19 | 82 | 53 | 108 | 190 | 90° | M36 x 1.5 |
| STDNCA5 | 44.7 | 28 | 109 | 65 | 136 | 245 | 60° | M48 x 1.5 |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Morse Taper Size | MT2, MT3, MT4, MT5 |
| Include Draw Off Nut | No, Yes |
