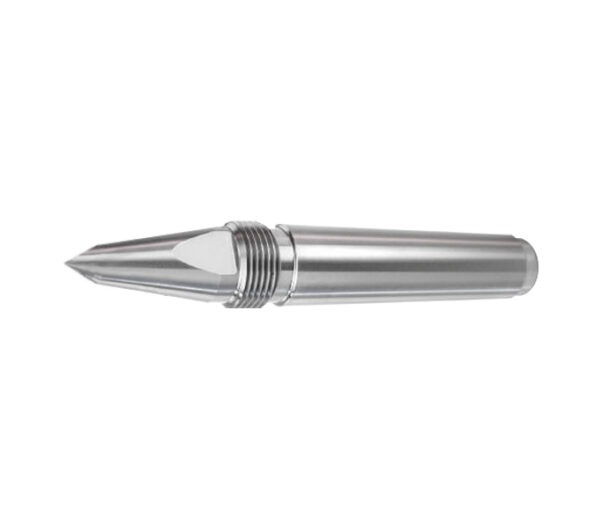

SUPERTECH Threaded Solid Center / Dead Center CNC Type B
80 $ – 265 $
SUPERTECH Threaded Solid Center / Dead Center CNC Type B
- High Performance Centers made from high-carbon alloy steel
- Ensuring superior roundness and exceptional product quality
- Hardness Rockwell C 61-63 HRC
- Concentricity Deviation within 0.005mm T.I.R
- Ideal for rigid requirements of CNC turning.
Description
SUPERTECH Threaded Solid Center / Dead Center CNC Type B
- High Performance Centers made from high-carbon alloy steel
- Ensuring superior roundness and exceptional product quality
- Hardness Rockwell C 61-63 HRC
- Concentricity Deviation within 0.005mm T.I.R
- Ideal for rigid requirements of CNC turning

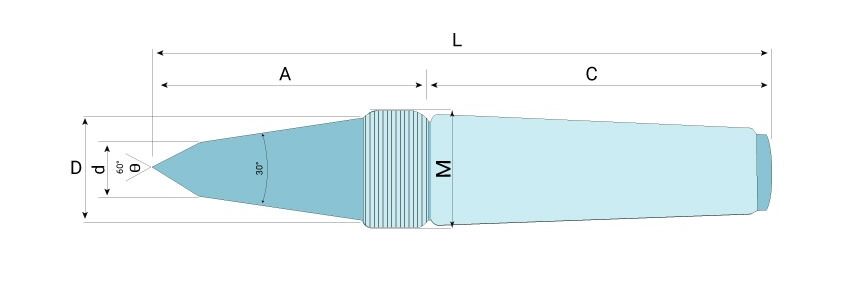

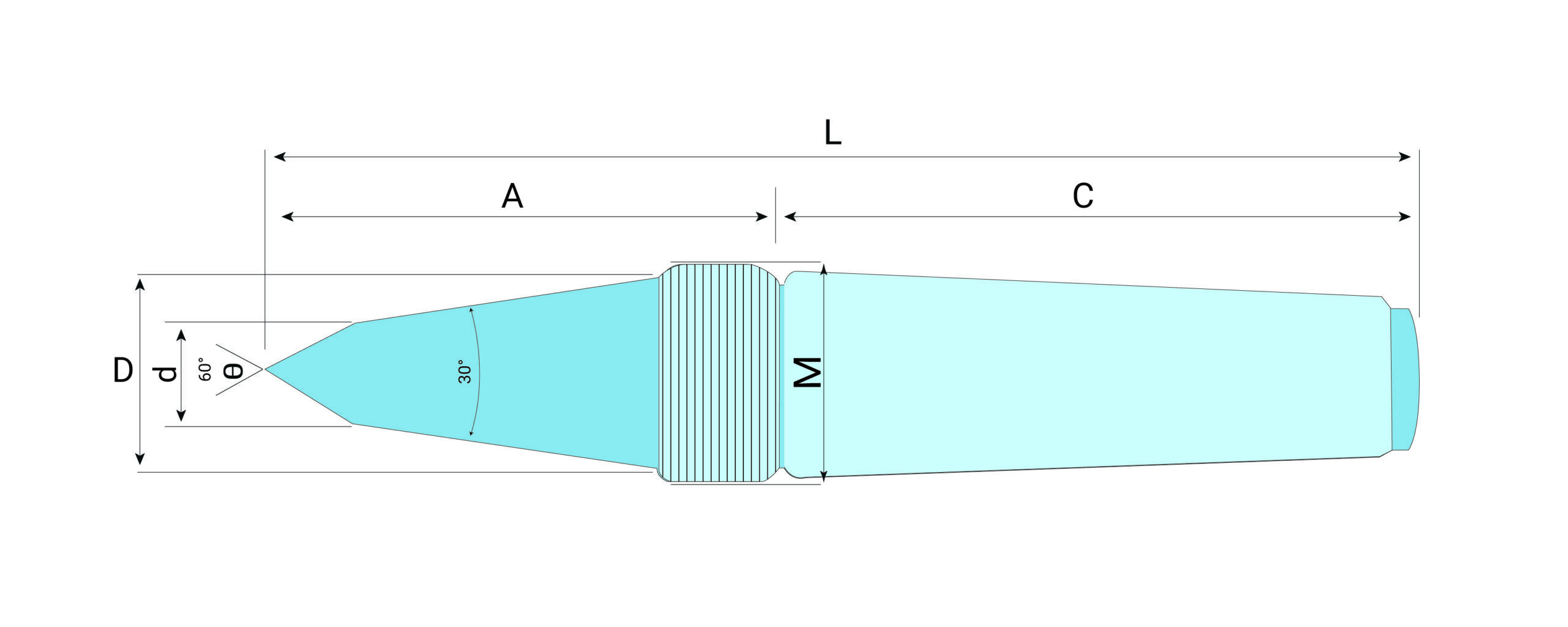

| Model No. | D | d | A | C | L | ° Degree | M (Thread) |
| STDNCB3 | 24 | 10 | 62 | 86 | 148 | 60° | M27 x 1.5 |
| STDNCB4 | 32 | 14 | 79 | 108 | 187 | 60° | M36 x 1.5 |
| STDNCB5 | 45 | 16 | 106 | 136 | 242 | 60° | M48 x 1.5 |
| STDNCB6 | 64 | 20 | 144 | 186 | 330 | 60° | M68 x 1.5 |
Additional information
| Weight | 0.6 kg |
|---|---|
| Dimensions | 148 × 27 × 27 mm |
| Morse Taper Size | MT3, MT4, MT5, MT6 |
| Include Draw Off Nut | Yes, No |
