SUPERTECH Threaded Solid Center / Dead Center CNC Type C
80 $ – 265 $

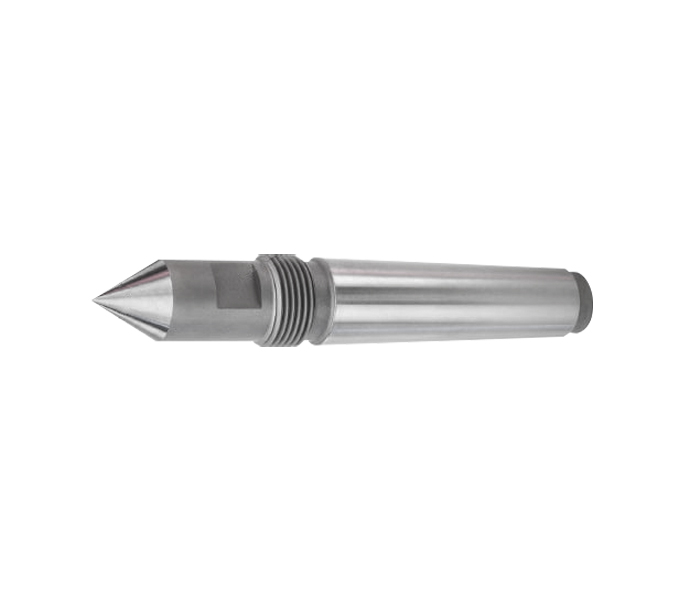

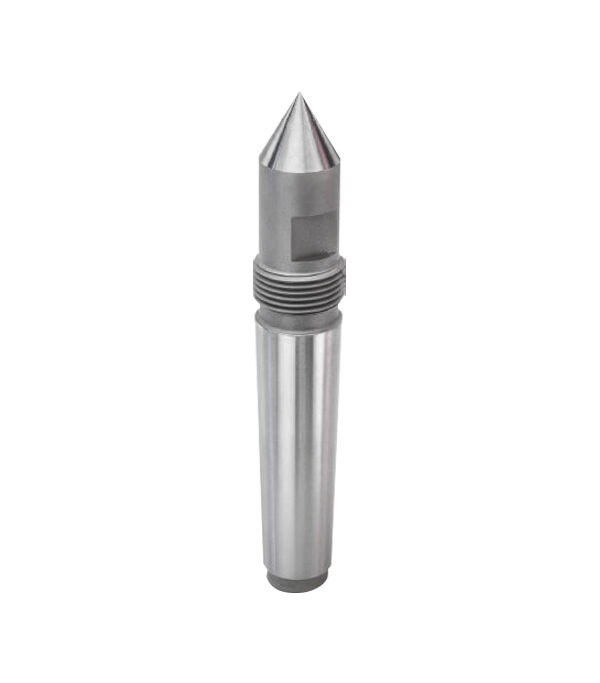

SUPERTECH Threaded Solid Center / Dead Center CNC Type C
- High Performance Centers made from high-carbon alloy steel
- Ensuring superior roundness and exceptional product quality
- Hardness Rockwell C 61-63 HRC
- Concentricity Deviation within 0.005mm T.I.R
- Ideal for rigid requirements of CNC turning.
Description
SUPERTECH Threaded Solid Center / Dead Center CNC Type C
- High Performance Centers made from high-carbon alloy steel
- Ensuring superior roundness and exceptional product quality
- Hardness Rockwell C 61-63 HRC
- Concentricity Deviation within 0.005mm T.I.R
- Ideal for rigid requirements of CNC turning

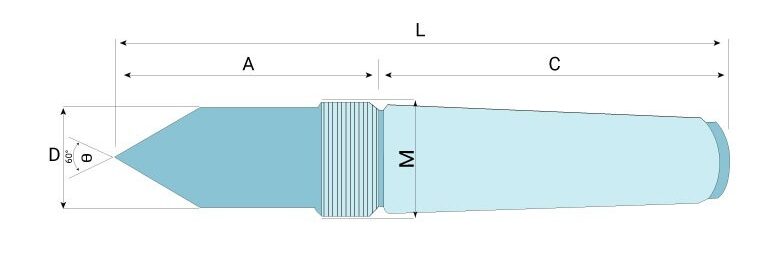

| Model No. | D | A | C | L | Degree (°) | M (Thread) |
| STDNCC3 | 24 | 57 | 86 | 143 | 60° | M27 x 1.5 |
| STDNCC4 | 32 | 72 | 108 | 180 | 60° | M36 x 1.5 |
| STDNCC5 | 45 | 87 | 136 | 223 | 60° | M48 x 1.5 |
| STDNCC6 | 64 | 108 | 186 | 294 | 60° | M68 x 1.5 |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Morse Taper Size | MT3, MT4, MT5, MT6 |
| Include Draw Off Nut | Yes, No |
